Product Model

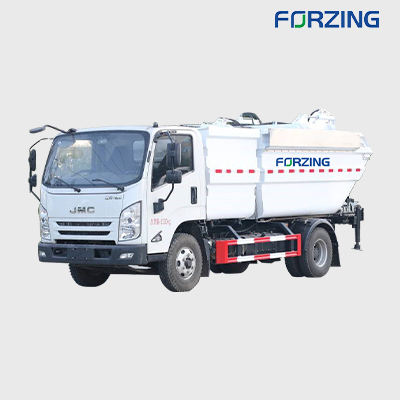

FDCWT5080 Duo-Chamber Garbage Compactor Truck
Chassis Model
JX1083TG26
Chassis Manufacturer
Jiangling Motors Co., Ltd (JMC)
Dimensions
Length (mm)
6490
Width (mm)
2099
Height (mm)
2515,2680
Engine Models
JX4D306H Jiangling Motors Co., Ltd (JMC)
Rated Power (kW)
112
Wheelbase (mm)
3360
Maximum Total Mass (kg)
8200
Curb Weight (kg)
5300,5700
Tire Model
7.50R16LT 14PR
Front Wheel Track (mm)
1580
Rear Wheel Track (mm)
1530
Approach Angle (°)
20
Departure Angle (°)
10
Upper Assembly Parameters
Front Bin Effective Volume (m3)
≥2
Rear Bin Effective Volume (m3)
≥5.5
Unloading Cycle Time (s)
≤30(front); ≤65(rear)
Time for One Cycle of Rear Bin Filling (s)
≤25
Special Parameters (s)
≤16(front); 16(rear)
Unloading Port Height (mm)
1400±50(front); 1450±50(rear)
Unloading Working Height (mm)
3500±50(front); 4800±50(rear)
Inlet Height (mm)
1930±50(front); 1960±50(rear)
Bin Docking Port Width (mm)
1320(front); 1770(rear)
Hydraulic System Pressure (MPa)
≥16
Control System
CAN Bus + Motion Controller
Hydraulic Hoses Manufacturer
Guangdong Tianhe
Directional Valves Manufacturer
Hunan Honghui, Yangzhou Zhongmei
Hydraulic Oil Pump:
532/516
Hydraulic Cylinders Manufacturer
Jiangsu Oil Cylinder
