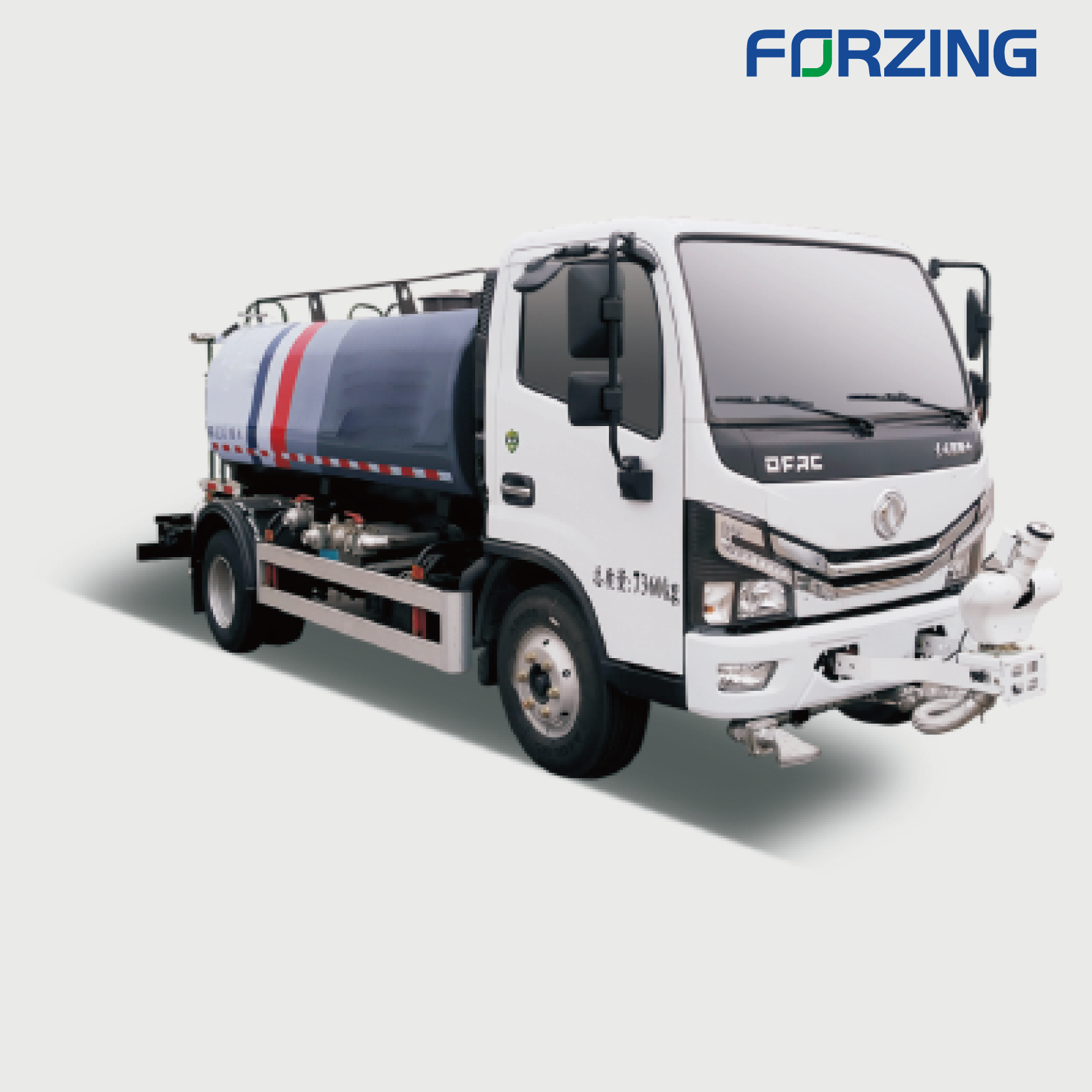

FWST5075 Water Sprinkler Truck

Unit

Model and Specifications

Item

Unit

Model and Specifications

Model

FLV5075GSSEQ6

Model

FLV5125GSSEQ6

Dimensions (L/W/H)

mm

6270,6740 x 2000x2250

Dimensions (L/W/H)

mm

7710,7060x2200x2560

Total mass

kg

7360

Total mass

kg

11995

Kerb weight (kg)

kg

3500

Kerb weight (kg)

kg

4550, 4770

weights

kg

3730, 3665

weights

kg

7250, 7315, 7030, 7095

Chassis type

EQ1075SJ3CDF

Chassis type

EQ1125SJ8CDC

Emission standards

VI

Emission standards

VI

Chassis type

Q23-136E60

Chassis type

D25TCIF1

Rated power of chassis engine

kw

100

Rated power of chassis engine

kw

110

sprinkling width

m

≥14

sprinkling width

m

≥14

flushing width

m

≥24

flushing width

m

≥24

Back water gun range

≥38

Back water gun range

≥38

The effective volume of the tank

m³

3.73

The effective volume of the tank

m³

7
