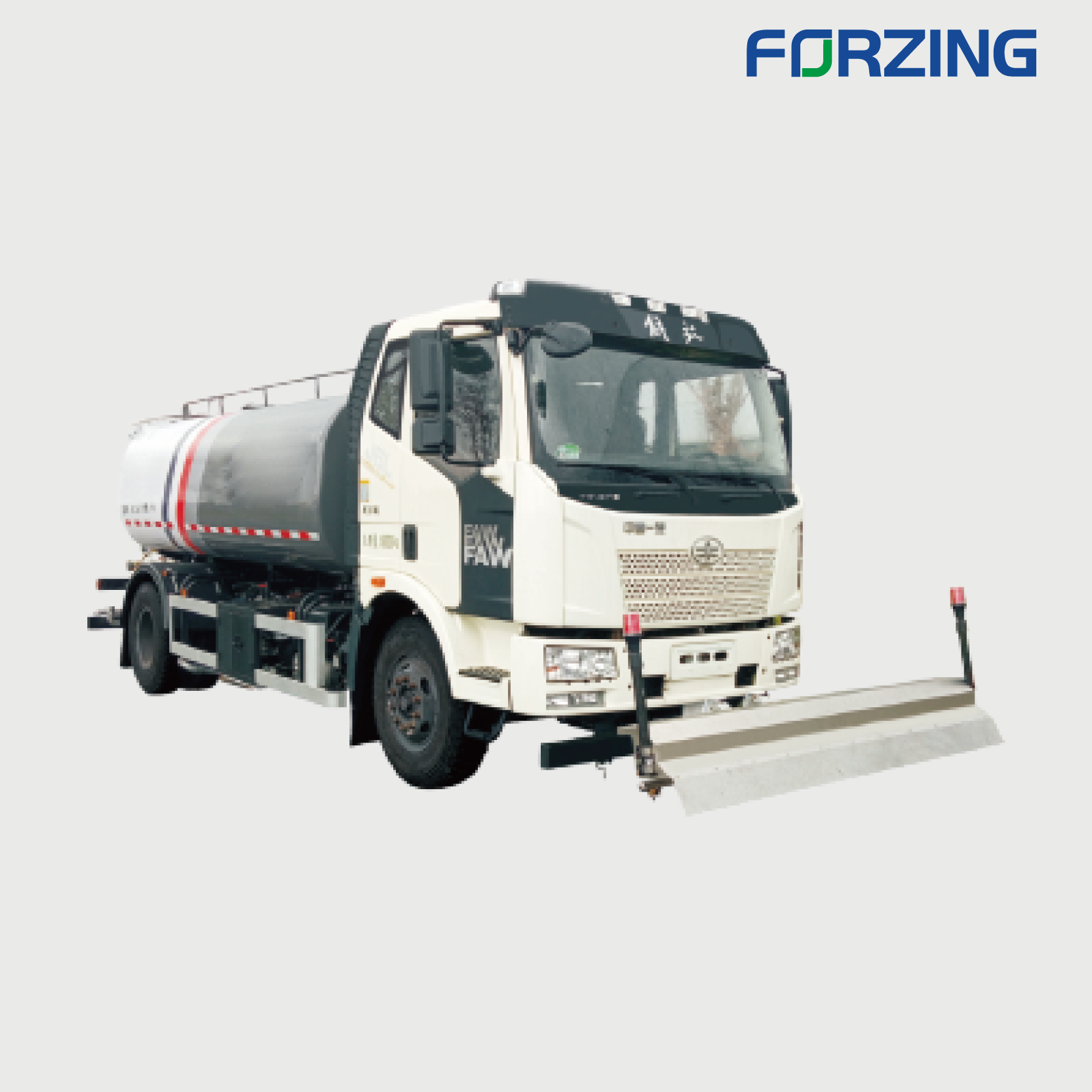

FHPCV5185 High-pressure Cleaning Vehicle

Item

Unit

Model and Specifications

Item

Unit

Model and Specifications

Model

FLV5185GQXDF6

Model

FLV5185GQXCA6

Dimensions (L/W/H)

mm

9100x2550x2940

Dimensions (L/W/H)

mm

9230x2530x2920

Total mass

kg

18000

Total mass

kg

18000

Kerb weight (kg)

kg

7850

Kerb weight (kg)

kg

7600

weights

kg

10020, 9955

weights

kg

10270, 10205

Chassis type

DFH1180EX8/

Chassis type

CA1180P62K1L2A1E6Z

Emission standards

VI

Emission standards

VI

Chassis engine model/manufacturer

B6.2NS6B210/M

Chassis engine model/manufacturer

CA4DK1-22E6

Rated power of chassis engine

kw

154

Rated power of chassis engine

kw

165

High pressure cleaning width

m

3.5

High pressure cleaning width

m

3.5

Rated pressure of the high-pressure water pump

MPa

10

Rated pressure of the high-pressure water pump

MPa

10

Low pressure sprinkling width

m

≥14

Low pressure sprinkling width

m

≥14

Low pressure flushing width

m

≥24

Low pressure flushing width

m

≥24

Back water gun range

m

≥38

Back water gun range

m

≥38

The effective volume of the tank

m³

9.8

The effective volume of the tank

m³

10.2
