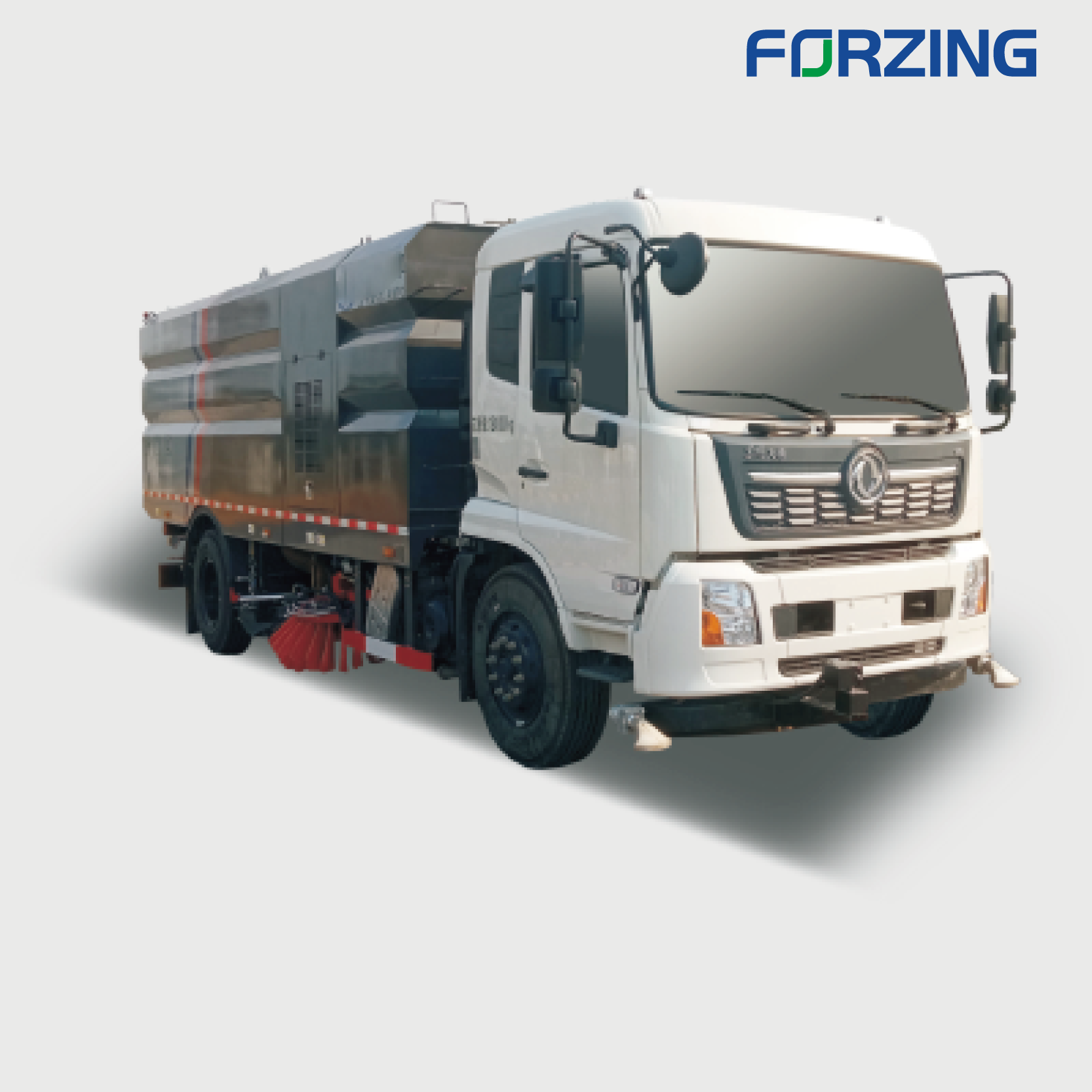

FWSV5181 Washing and Sweeping Vehicle

Item

Unit

Specifications

Item

Unit

Specifications

Model

FLV5181TXSDF6

Model

FLV5185TXSZZ6

Dimensions (L/W/H)

mm

8630, 8940x2500x3100

Dimensions (L/W/H)

mm

8660x2500x3180

Total mass

kg

18000

Total mass

kg

18000

Kerb weight (kg)

kg

11800

Kerb weight (kg)

kg

11600

Weights

kg

6070, 6005

Weights

kg

6270, 6205

Chassis type/Manufacturer

DFH1180EX8/Dongfeng

Chassis type

ZZ1187K501GF1/S

Emission standards

VI

Emission standards

VI

Chassis engine model/Manufacturer

B6.2NS6B210/CUMMINS

Chassis engine model/manufacturer

WP4.6NQ220E61

Rated power of chassis engine

kw

154

Rated power of chassis engine

kw

162

Maximum washing and sweeping width

m

4.2

Maximum washing and sweeping width

m

4.2

Sweeping width

m

3.5

Sweeping width

m

3.5

Washing and sweeping speed

km/h

5~20

Washing and sweeping speed

km/h

5~20

Sweeping speed

km/h

3-15

Sweeping speed

km/h

3-15

Cleaning speed

km/h

3~20

Cleaning speed

km/h

3~20

Max. cleaning capacity

m²/h

84000

Max. cleaning capacity

m²/h

84000

Tank Capacity

m³

9

Tank Capacity

m³

9

Dumpster Capacity

m³

7

Dumpster Capacity

m³

7
